Dual-Motor 3×20-Inch Electric Kart
Starting at €3,200, including VAT.

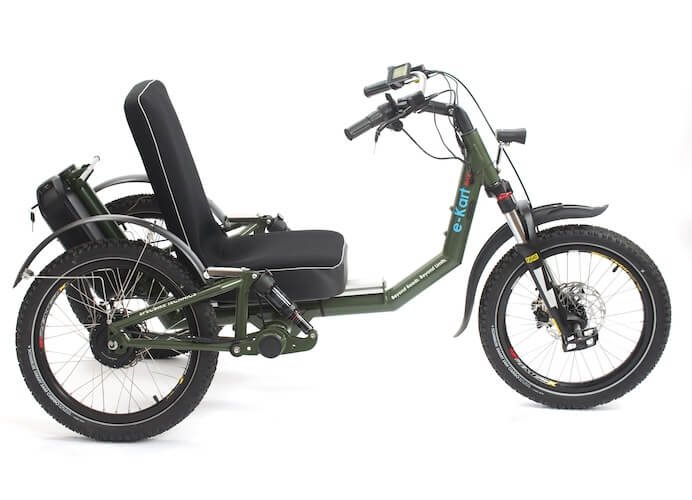

The SpecBikeTechnics e-KART MAXI is a fully electric three-wheel kart designed for recreational riding, tourism and commercial rental use. Unlike a bicycle, it has no pedals, chain, crankset or mechanical gear system. The low seating position, adjustable seat and fully electric drive make operation straightforward for riders with different levels of experience.
Two 350 W motors are installed in the rear wheels, providing a combined nominal power of 700 W. The standard configuration includes a 20 Ah battery and an adjustable maximum speed of up to 25 km/h.
The full-suspension system combines an EXSHO hydraulic front fork with a DNM AO-38AR rear air shock absorber. Hydraulic brakes are installed on all three wheels, while the rear Twin Brake system operates both rear brakes simultaneously.
Three 20-inch wheels are fitted with Schwalbe Smart Sam Cargo Super Defense E-MTB tires. Standard equipment also includes a fiberglass seat, mudguards, an S235JR steel frame and a rear carrier for a side bag with a maximum load of 10 kg.
Fully Electric Drive
The e-KART MAXI uses a fully electric drive system without bicycle chains, pedals, cranksets or mechanical gear shifting. Two 350 W motors are installed in the rear wheels, providing a combined nominal output of 700 W.
The standard configuration includes a 20 Ah battery. More powerful motors and an additional battery can be discussed as optional upgrades.
Full-Suspension System
The full-suspension configuration combines an EXSHO hydraulic front fork with a DNM AO-38AR rear air shock absorber measuring 200 × 53 mm. The system helps reduce vibrations and impacts when riding over uneven surfaces.
Hydraulic Brakes on All Wheels
Hydraulic brakes are installed on all three wheels. The rear Twin Brake system operates both rear brakes simultaneously when the brake lever is pressed, helping provide balanced and predictable braking.
Adjustable Speed Limit
The maximum configured speed is up to 25 km/h. The speed limit can be adjusted according to the rider’s age, experience and the requirements of the operating environment.
20-Inch E-MTB Tires
The e-KART MAXI uses three 20-inch wheels fitted with Schwalbe Smart Sam Cargo Super Defense E-MTB tires in size 20 × 2.35. The tires are designed for cargo and electric bicycle applications and support use on mixed riding surfaces.
Commercial and Recreational Use
The e-KART MAXI is designed for recreational use, tourism and commercial rental operations. Its fully electric drive eliminates the need for pedaling, while the adjustable seat and configurable speed limit allow the vehicle to be adapted to different riders and operating environments.
Intended Riders
The e-KART MAXI is intended for supervised recreational use by children from six years of age, adults and older riders. Individual suitability depends on the rider’s height, weight, coordination and the configured speed limit.
Riders who require additional physical support should assess the vehicle individually before use. The e-KART MAXI is not presented as a medical mobility device.
Rear Carrier and Mudguards
Front and rear mudguards are included in the standard configuration. A rear carrier suitable for a side bag provides a maximum luggage capacity of 10 kg.
Optional Configuration
Available configuration options include:
- More powerful electric motors
- Additional battery capacity
- Adjustable speed limitation
- Accessories for commercial rental use
- Additional luggage solutions
Contact SpecBikeTechnics to confirm the final configuration, delivery cost and current production time.
Standard Components and Equipment
| Component | Manufacturer | Specification | Qty. |
|---|
| Rear electric motor | Not specified | 350 W | 2 |
| Battery | Not specified | 20 Ah | 1 |
| Front suspension fork | EXSHO | Hydraulic suspension fork | 1 |
| Rear shock absorber | DNM | AO-38AR, air, 200 × 53 mm | 1 |
| Front hydraulic brake | Not specified | Hydraulic disc brake | 1 |
| Rear Twin Brake system | Not specified | Simultaneous hydraulic braking of both rear wheels | 1 set |
| Wheel set | Not specified | Three 20-inch wheels | 1 set |
| Tires | Schwalbe | Smart Sam Cargo Super Defense E-MTB, 20 × 2.35 | 3 |
| Seat | SpecBikeTechnics | Fiberglass, adjustable | 1 |
| Mudguards | Not specified | For 3×20-inch wheel configuration | 1 set |
| Rear carrier | SpecBikeTechnics | For side bag, maximum load 10 kg | 1 |
| Frame | SpecBikeTechnics | S235JR steel, TIG-welded | 1 |
Technical Specifications
| Specification | Unit | Value |
|---|
| Vehicle type | — | Fully electric three-wheel kart |
| Wheel configuration | — | 3×20-inch |
| Number of electric motors | — | 2 |
| Motor location | — | Rear wheels |
| Motor power | W | 2 × 350 |
| Combined nominal motor power | W | 700 |
| Battery capacity | Ah | 20 |
| Maximum configured speed | km/h | 25 |
| Adjustable speed limit | — | Yes |
| Pedal drive | — | No |
| Front suspension | — | EXSHO hydraulic fork |
| Rear suspension | — | DNM AO-38AR air shock |
| Rear shock size | mm | 200 × 53 |
| Brake system | — | Hydraulic brakes on all wheels |
| Rear brake system | — | Twin Brake |
| Tire model | — | Schwalbe Smart Sam Cargo Super Defense E-MTB |
| Tire size | inch | 20 × 2.35 |
| Rear carrier capacity | kg | 10 |
| Frame material | — | S235JR steel |
| Manufacturer’s minimum age | years | 6 |
Why Choose the SpecBikeTechnics e-KART MAXI?
- Fully electric drive without pedals or bicycle transmission;
- Two rear-wheel motors with a combined nominal output of 700 W;
- 20 Ah battery in the standard configuration;
- Full front and rear suspension;
- EXSHO hydraulic front suspension fork;
- DNM AO-38AR rear air shock absorber;
- Hydraulic brakes on all three wheels;
- Rear Twin Brake system;
- Adjustable maximum speed of up to 25 km/h;
- Adjustable fiberglass seat;
- Three Schwalbe Smart Sam Cargo 20-inch tires;
- Rear carrier with a maximum load of 10 kg;
- TIG-welded S235JR steel frame;
- Designed for recreational, tourism and rental use.
WHY SPECBIKETECHNICS?
- Best price on the market period (If you found better, let us know, we will make a discount!)
- Frame with the 2-year warranty from the manufacturer.
- Adjustable spring elements for adjusting the ride and suspension comfort.
- Each wheel is individually sprung and thus also provides improved traction.
- Professional ball bearings in the front hubs ensure easy rolling behaviour.
- Additional corrosion protection of the front suspension.
- Versatile adjustable seating positions from sport (flat seating position) to comfort (more upright seating position).
- Powder coating.
- Driver hight from approx. 1.40 m to 2.20 m can be compensated with the adjustable frame and the seat position.
- Free Rear Carrier
- The transmission is equipped with SHIMANO components.
